Mobile Fidelity

STUDIODeck

It’s only natural to use the word “Studio” in the name of one of our turntables, as doing so brings together MoFi’s software and hardware sides. And while it’s our entry-level offering, StudioDeck produces high-caliber sound at a value price. Designed in collaboration with some of the world's finest audio designers, StudioDeck features an incredible amount of ingenuity and technology usually reserved for much more expensive products.

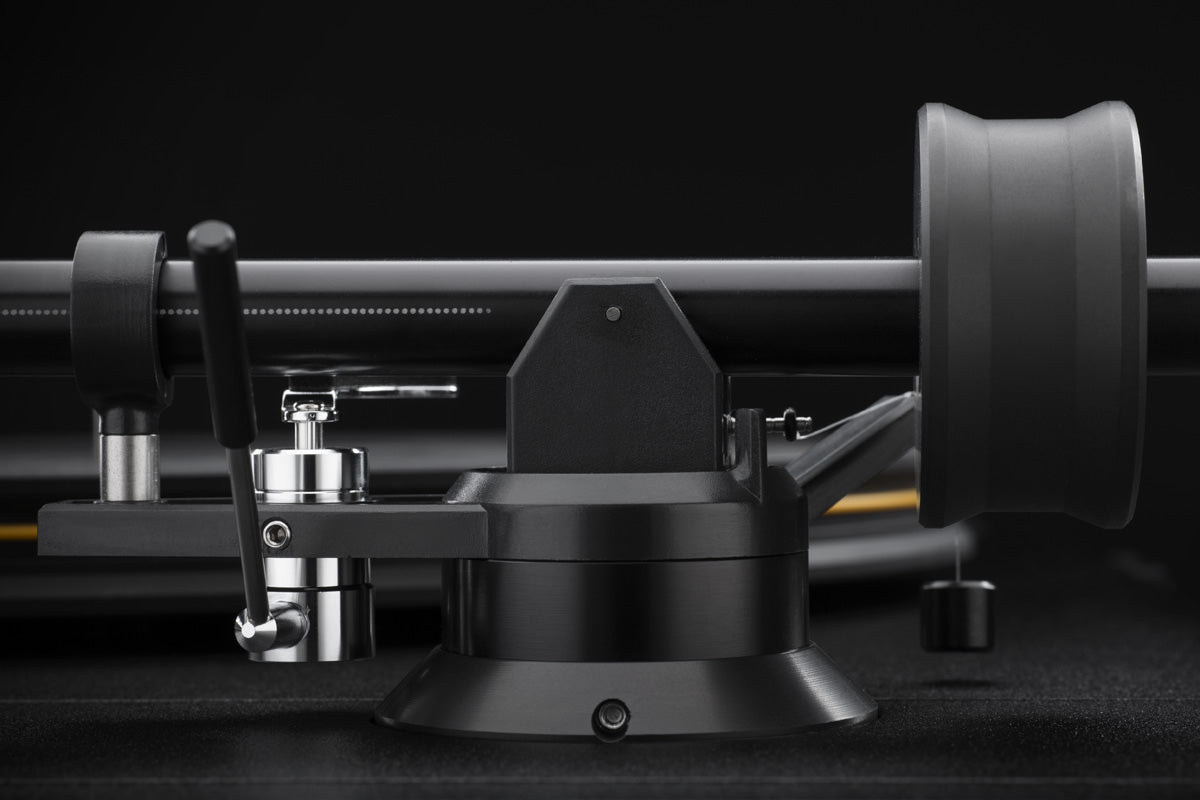

Mobile Fidelity StudioDeck Tonearm Detail

STUDIO TONEARM

Custom developed and manufactured in the USA, this 10-inch straight aluminum gimbaled bearing tonearm delivers the ideal balanced of rigidity and low tracking error, so all you hear is what is in the grooves. Tweak to your heart's delight with provisions for adjustable tracking force, VTA, azimuth, and anti-skate.

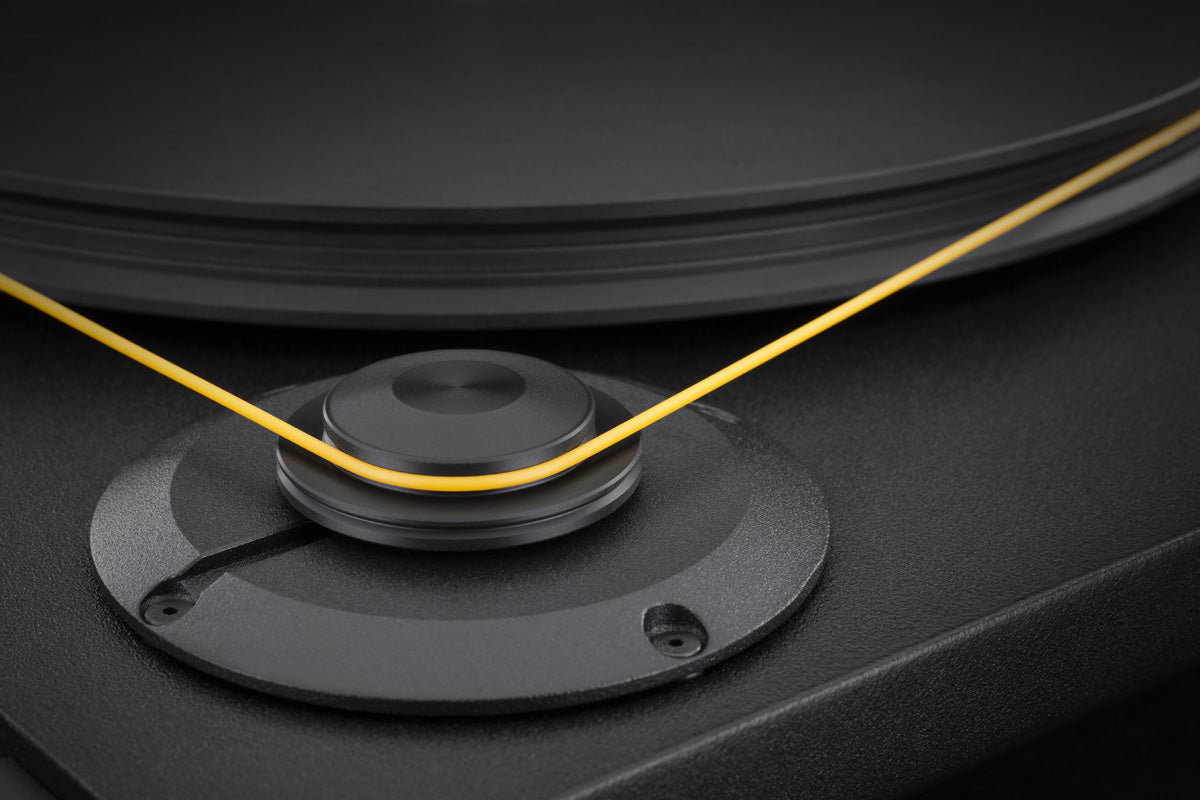

Mobile Fidelity StudioDeck Motor Platter Detail

ISOLATED AC SYNCHRONOUS MOTOR

Our 300 RPM stepped-pulley AC motor provides excellent speed stability for pitch accuracy and rhythmic drive. The Delrin® pulley has two positions for 33 1/3 and 45 RPM speed selection. Motor vibrations are kept away from the platter and stylus by using advanced dampening materials that decouple the motor from the rest of the turntable.

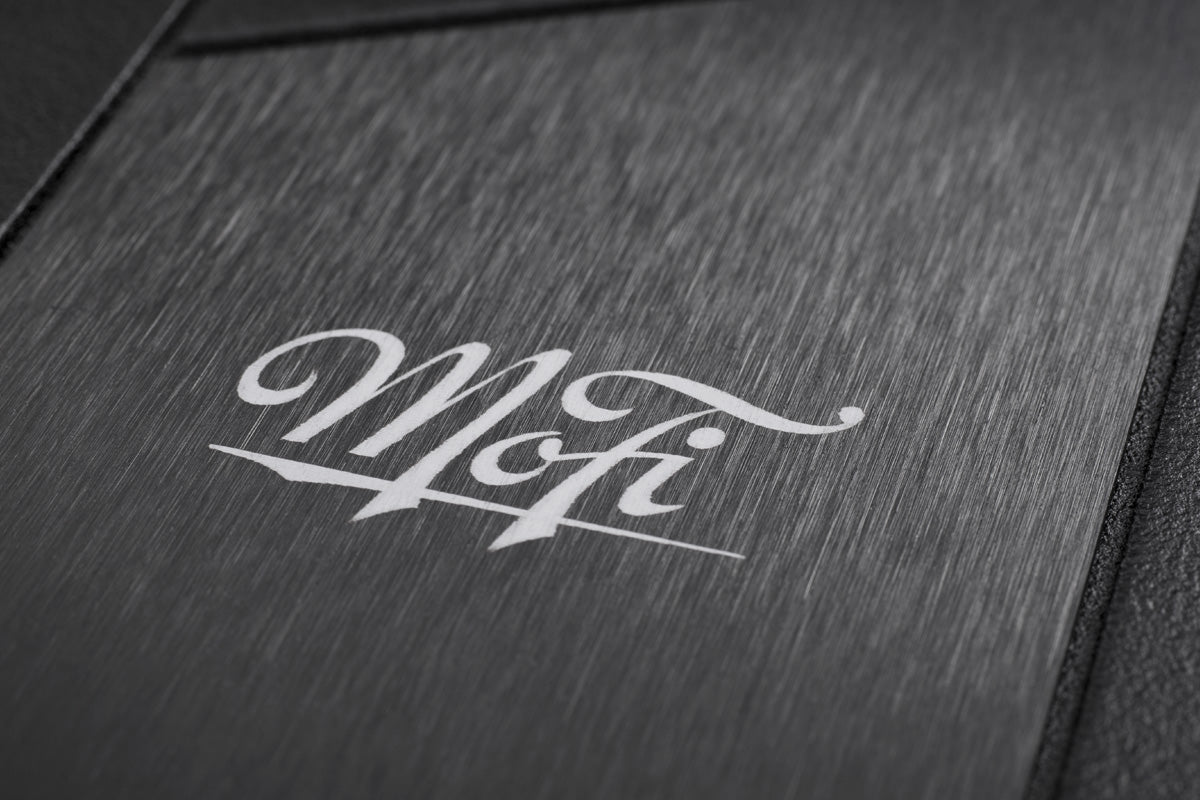

Mobile Fidelity StudioDeck Plate Detail

CONSTRAINED LAYER DAMPENING

StudioDeck features an aluminum plate carefully bonded to an MDF body to add mass and eliminate tonal coloration, maintaining the true sound found on the record.


Mobile Fidelity StudioDeck Profile

METICULOUS DESIGN AND EVALUATION

Advanced technology, user-friendly features, and unflappable design elements ensure phenomenal playback—ultimately bringing the sound of Mobile Fidelity’s famous studio into your home.


Mobile Fidelity UltraDeck Feet Detail

ANTI-VIBRATION FEET BY HRS

Any vibration of the stylus that is not created by the grooves in the record is a distortion that will mask musical detail. Developed in conjunction with the engineering team at Harmonic Resolution Systems, the world leader in vibration isolation for audio equipment, the included MoFi anti-vibration feet isolate your turntable from bad vibrations.

Mobile Fidelity StudioDeck Platter Detail

3/4-INCH DELRIN® PLATTER

Delrin® is a next-generation polymer developed by Dupont. In the world of audio, Delrin's® highly crystalline structure presents a wonderful impedance match to vinyl records, effectively grounding unwanted noise and keeping it away from the stylus.

Mobile Fidelity StudioDeck Bearing Detail

STEEL AND TEFLON INVERTED BEARING

Our steel inverted bearing system is designed for smooth, quiet rotational stability. The extremely low tolerance combination of steel, bronze, and teflon—found in much more expensive turntables—will provide you many years of high-performance playback.


SPECIFICATIONS

Motor
300 RPM AC Synchronous

Speeds
33 1/3 RPM, 45.0 RPM

Platter
3.88 lb Delrin®

Wow & Flutter
0.017% – 0.025%

Signal-To-Noise Ratio
72dB

Power Supply Requirements
120V 60Hz, 220-230V 50Hz, 100V 50Hz

Power Consumption
< 5W

Dimensions
19.69" x 5.375" x 14.25"

Weight
19.1 lb

TONEARM SPECIFICATIONS

Type
10" straight aluminum, gimbaled bearing

Overhang
0.71" (18mm)

Offset Angle
22.8˚ (+/- 2˚ adjustable)

Effective Mass
35g (+/- 0.5g)

Cartridge Weight Range
5g – 10g

FEATURES

• 33-1/3 and 45.0 RPM belt drive turntable

• Custom design and manufactured in the USA

• 10-inch MoFi Studio Tonearm

• 3/4-inch Delrin® platter

• Isolated 300 RPM AC synchronous motor

• Anti-Vibration feet designed by HRS


DOWNLOADS

Mobile Fidelity StudioDeck Manual
