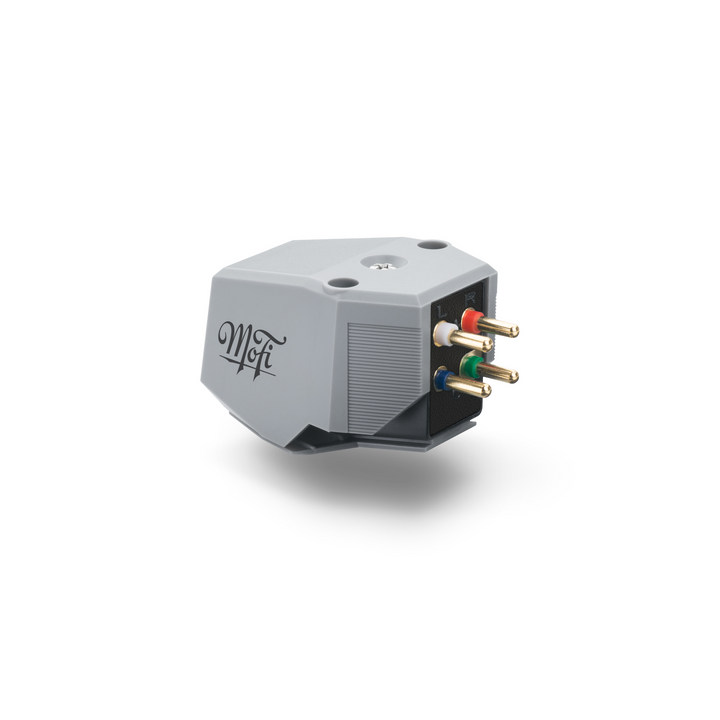

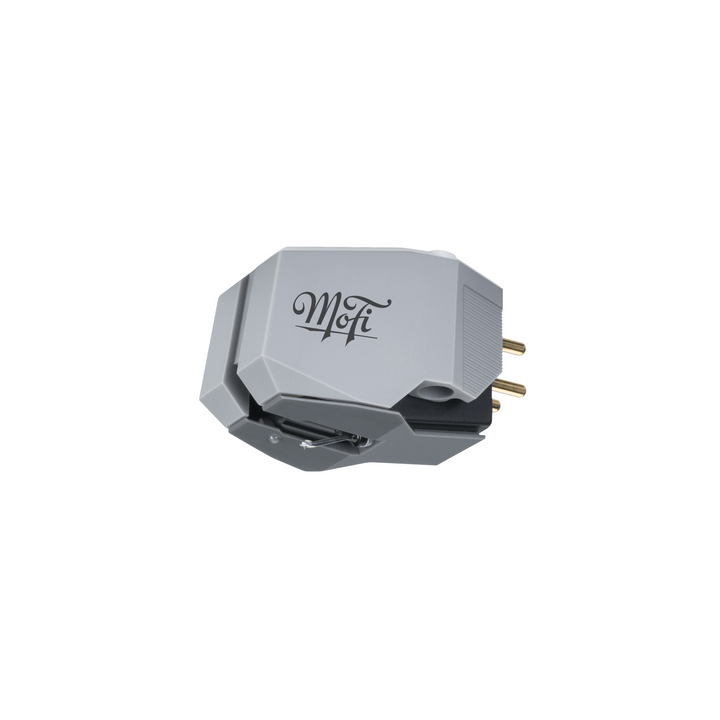

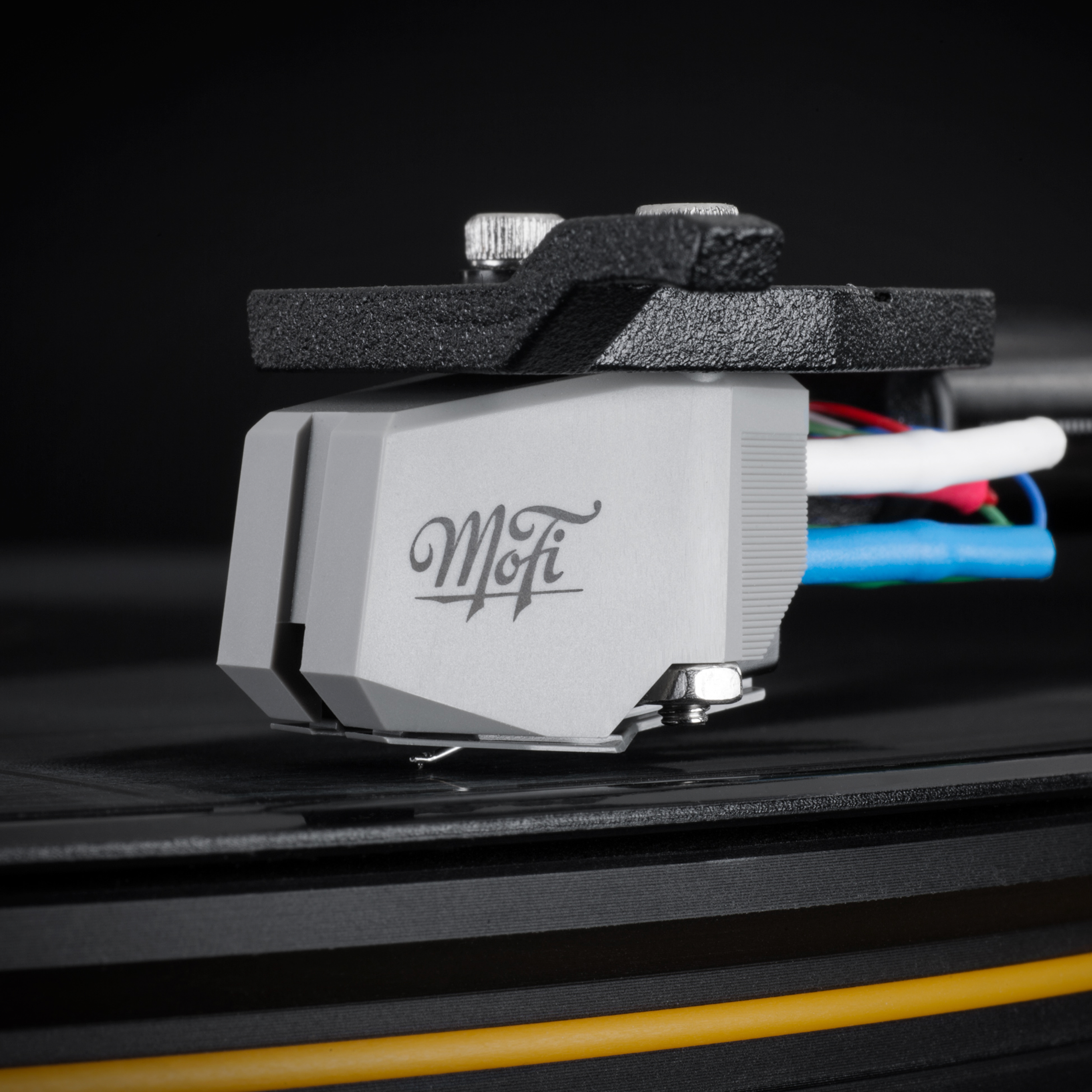

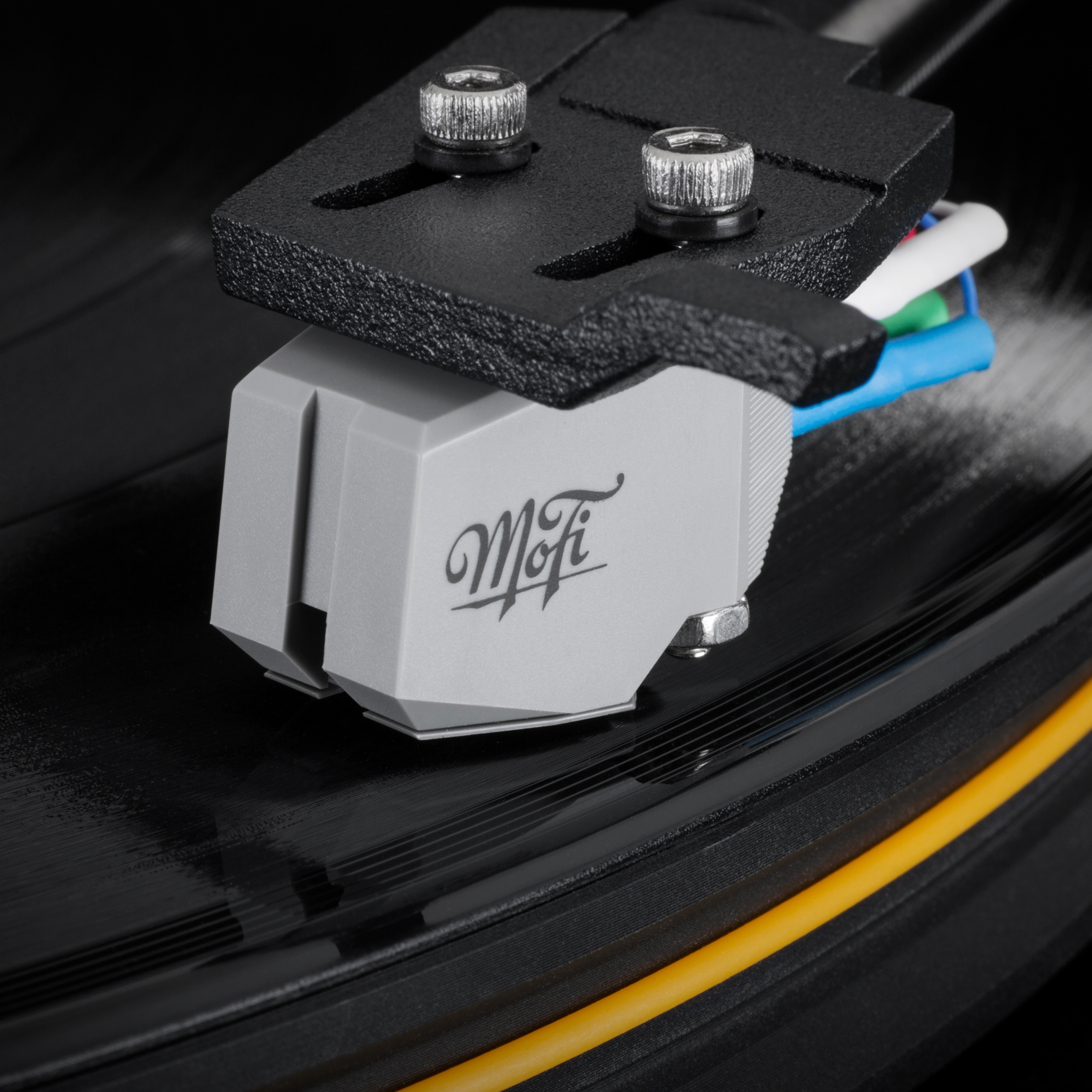

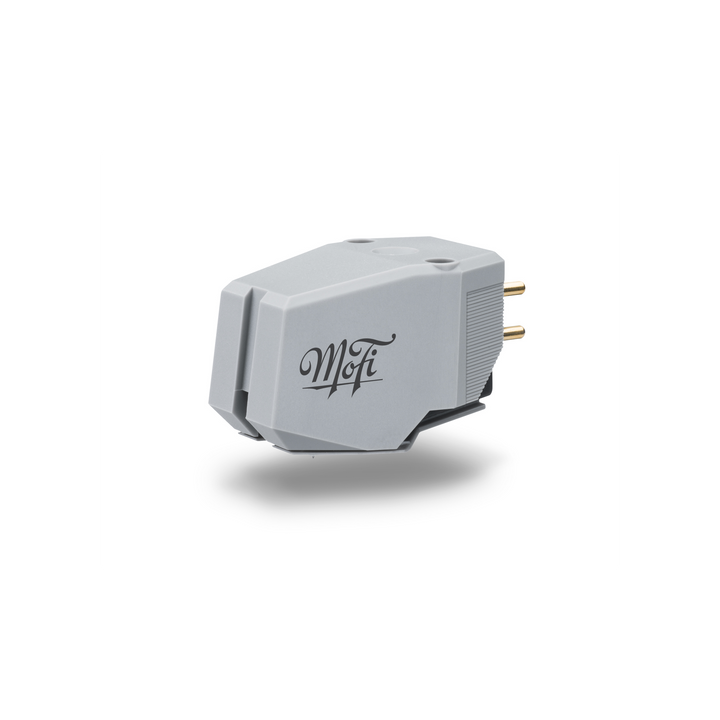

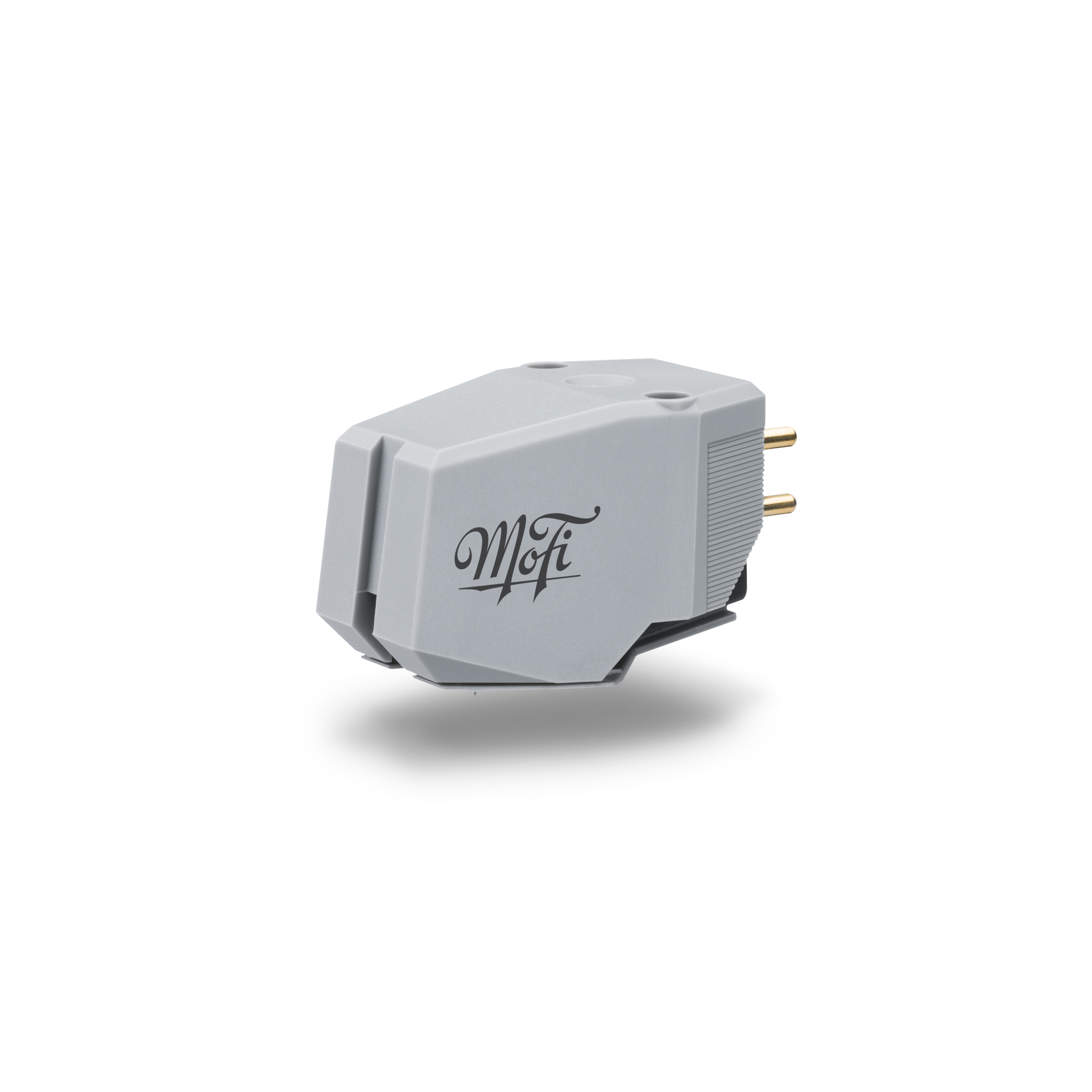

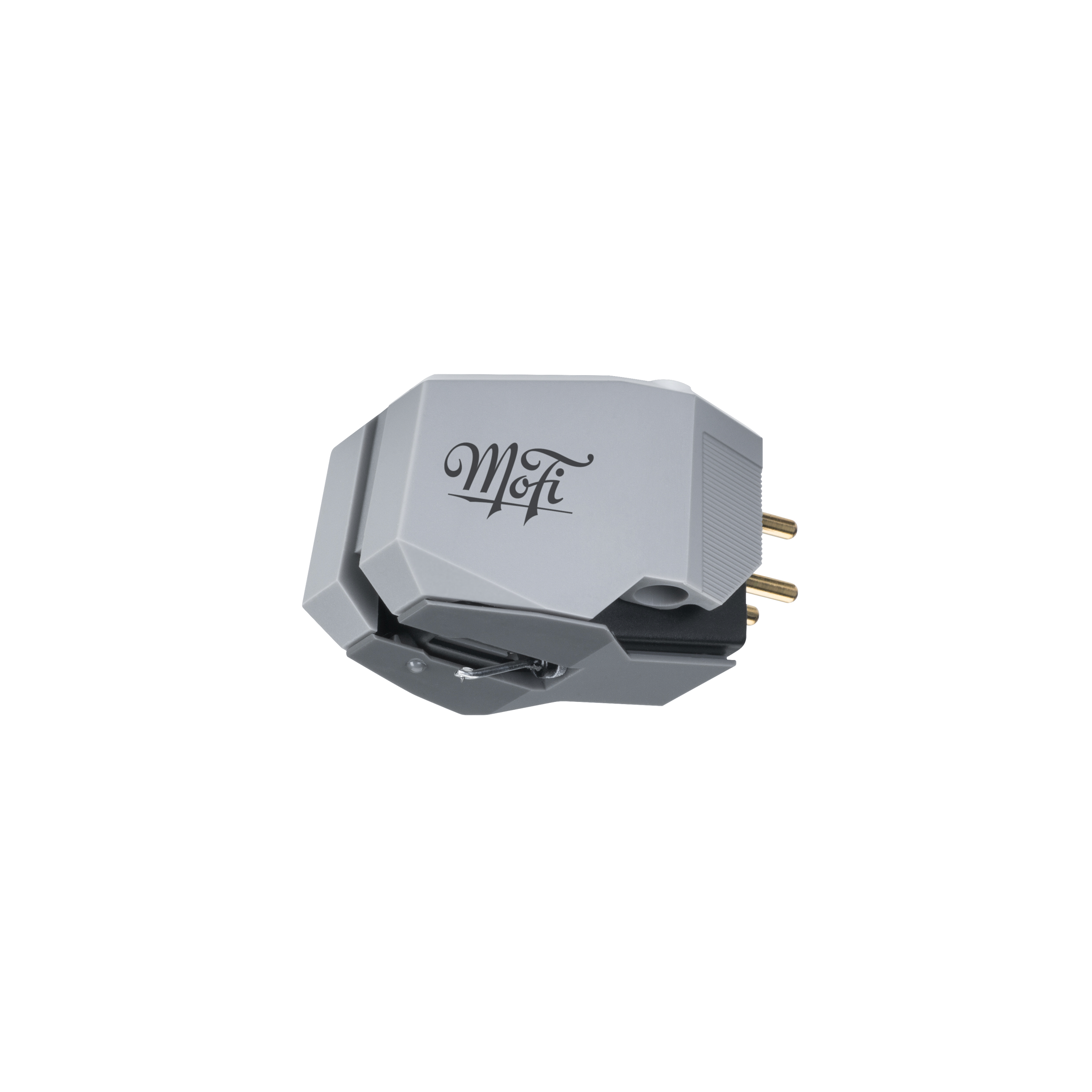

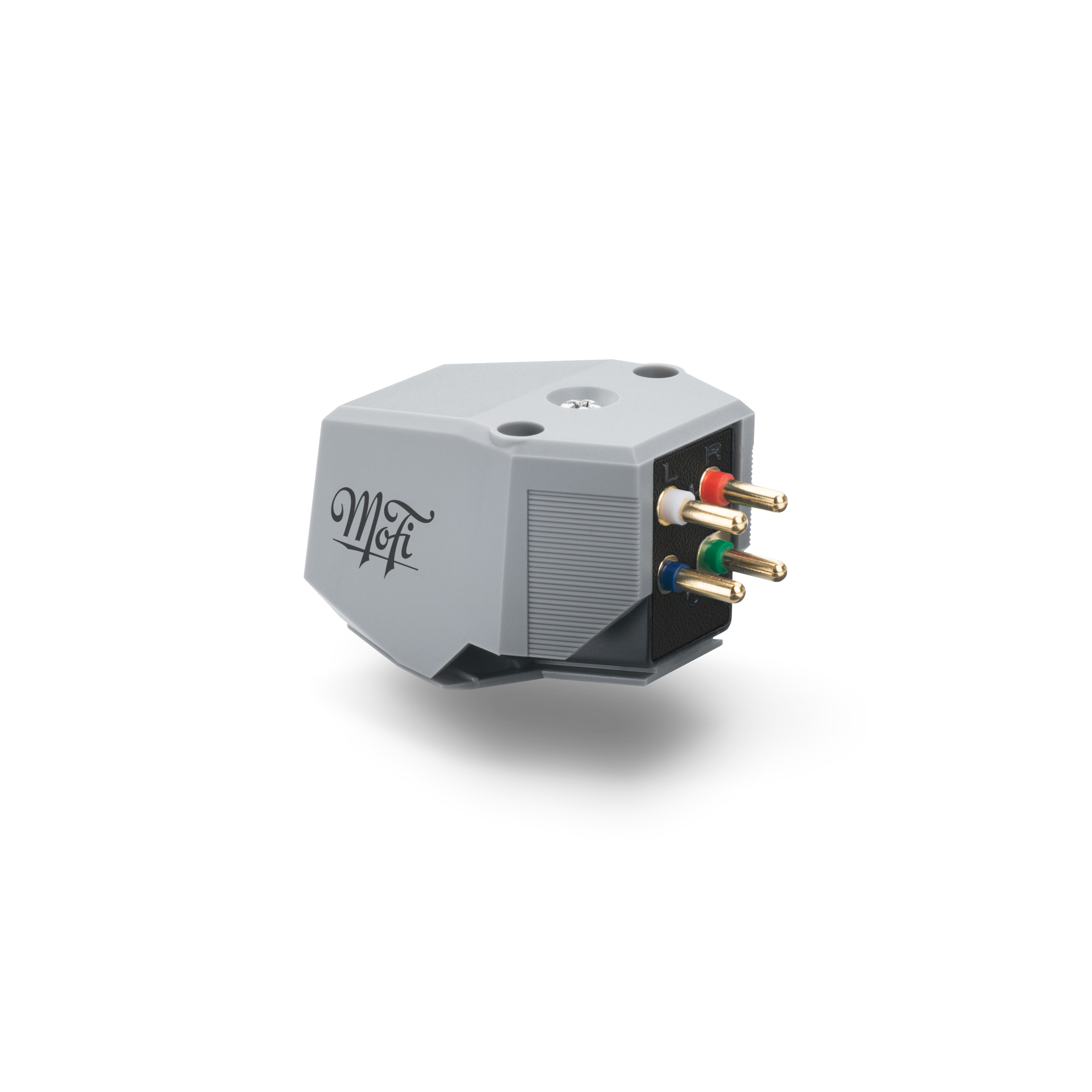

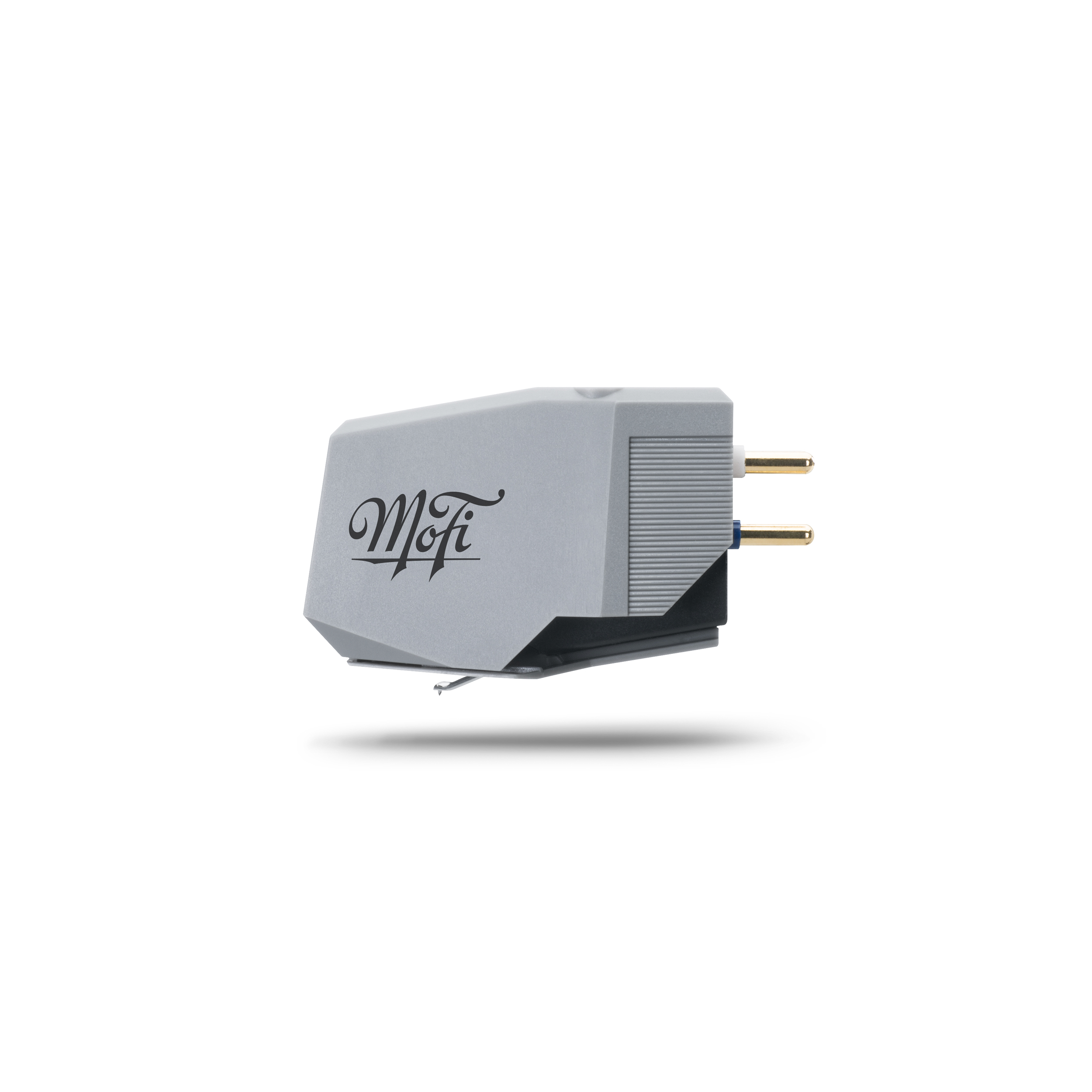

MoFi Electronics StudioTracker MM Phono Cartridge

STUDIOTRACKER

 MoFi cartridges are designed by looking back at where a record starts: On a lacquer cutting lathe like the model used at Mobile Fidelity Sound Lab. StudioTracker features a V-Twin dual-magnet generator that mirrors the layout of the cutting head that originally made a record’s grooves.

V-TWIN DUAL-MAGNET GENERATOR

Employing two low-mass, powerful magnets aligned in a V formation parallel with the stereo record grooves, StudioTracker accurately extracts precious details from your LPs.

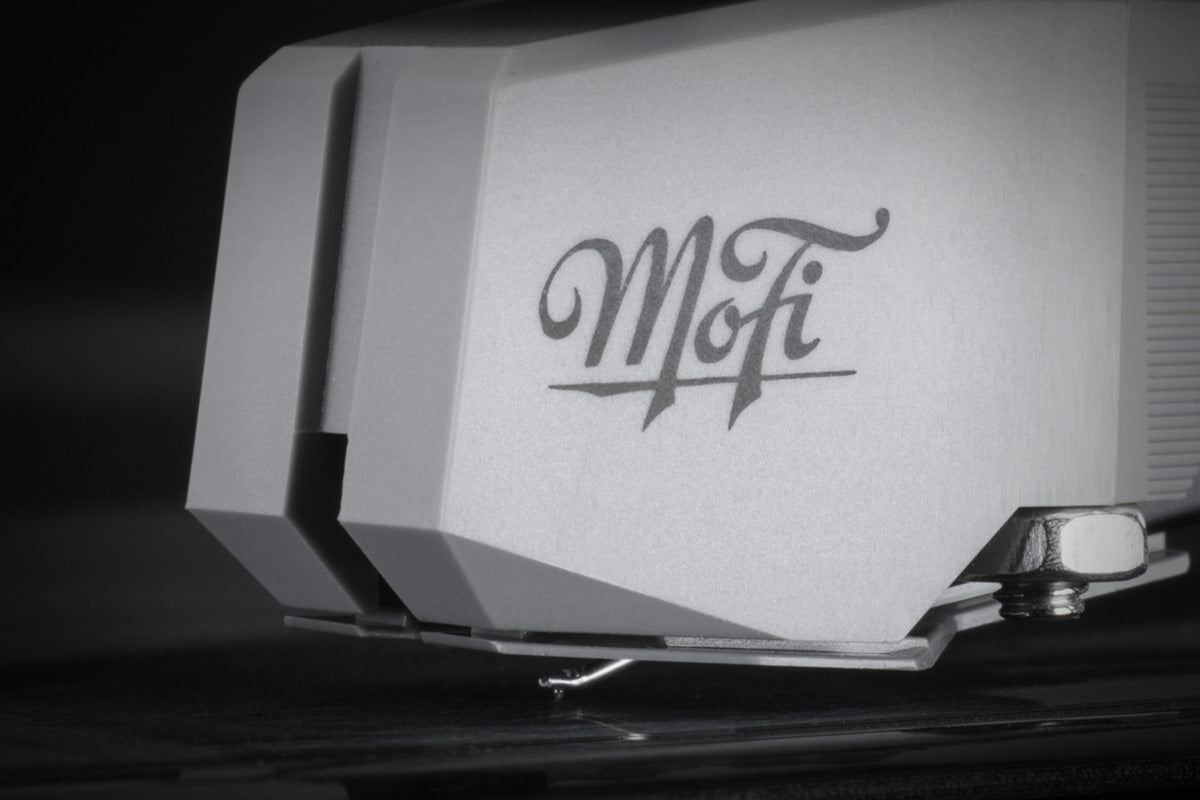

ELLIPTICAL DIAMOND STYLUS

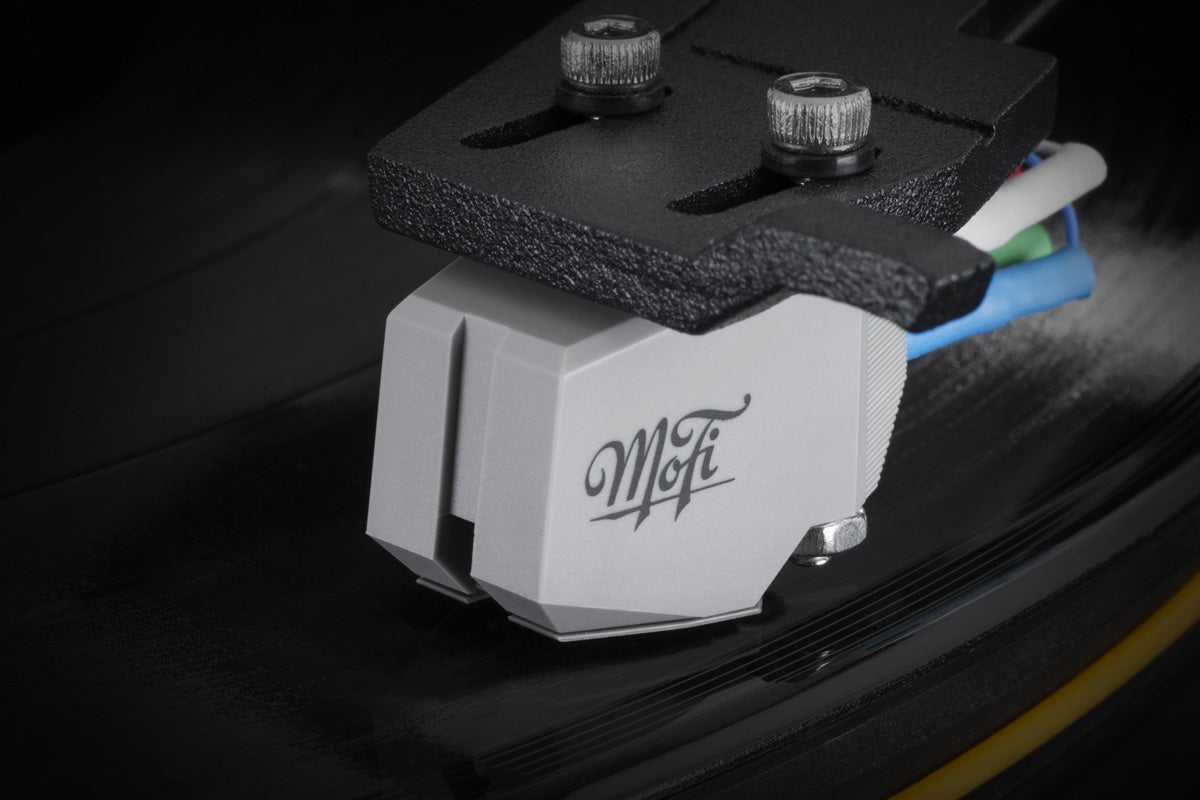

With a polymer body and elliptical stylus, StudioTracker offers surprising bang-for-your-buck value and a rich sound distinguished with a smooth, slightly forgiving top end.

SPECS & FEATURES

SPECIFICATIONS

Type:
Dual Magnet (MM) Stereo

Stylus:
Elliptical

Output Voltage:
3.5mV

Frequency Response:
20–20,000Hz

Weight:
6.4g

Tracking Force:
1.8–2.2g

Impedance:
47kOhm

Capacitance:
100pF

Compliance:
Static compliance: 35 x 10e-6/dyne
Dynamic compliance: 8 x 10e-6/dyne

FEATURES

Features:
• V-Twin dual-magnet generator

• Elliptical stylus

• Polymer body

• 3.5mV output
